Vanwood Floors

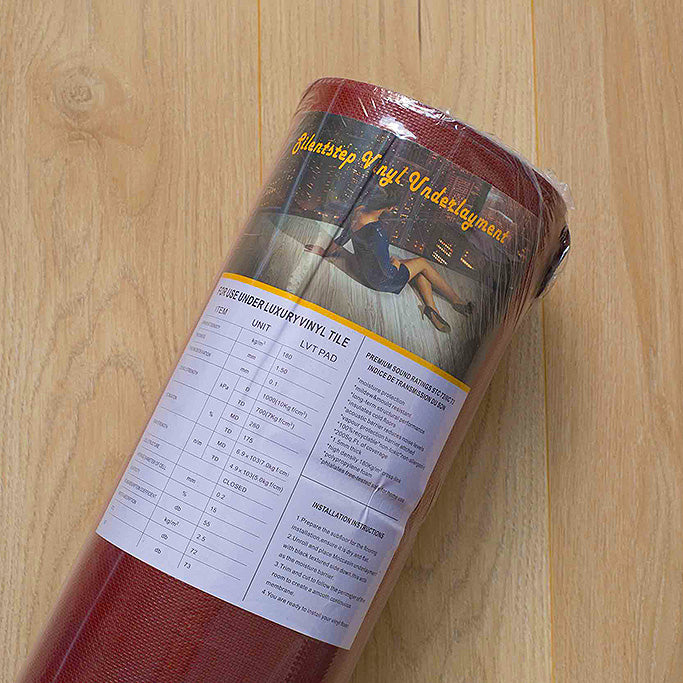

Silentstep Vinyl Underlayment

Luxury Vinyl Tile Underlay

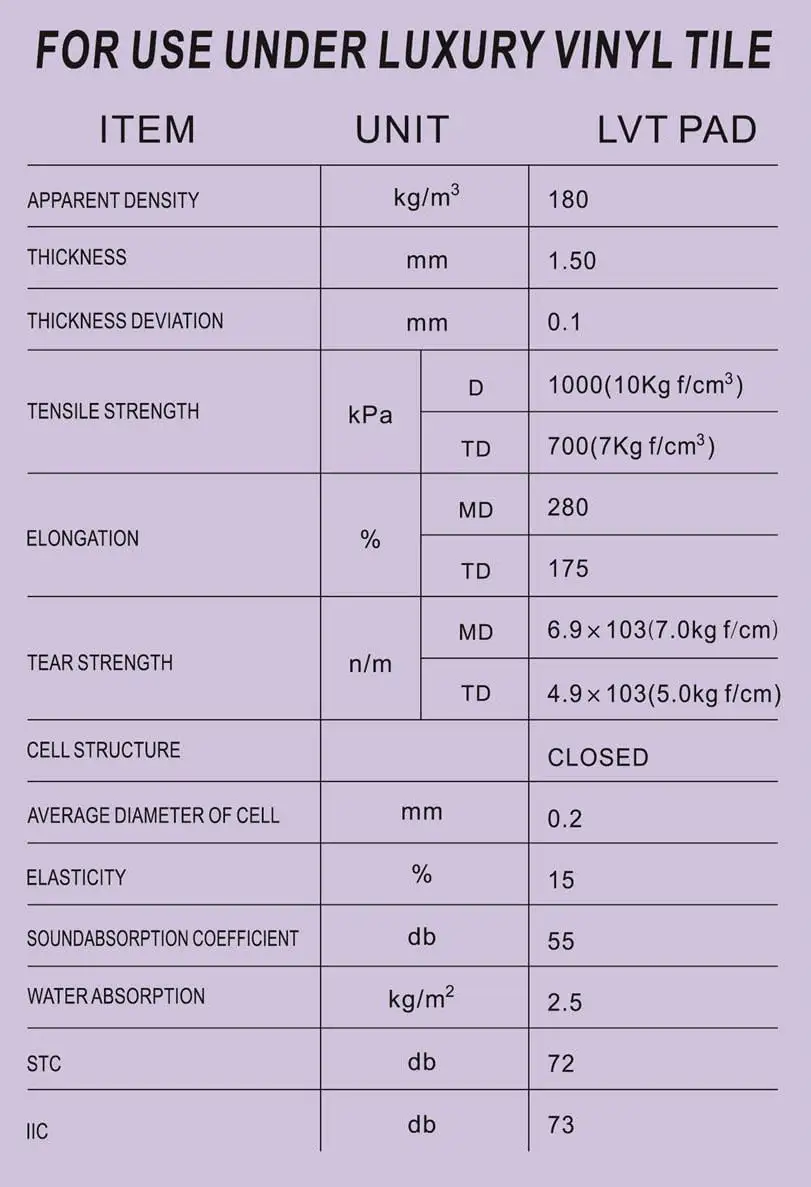

ITEM	UNIT		LVT PAD
Apparent Density	kg/m3		180
Thickness	mm		2.0
Thickness Deviation	mm		0.1
Tensile Strength	kPa	D	1000(10Kg f/cm3)
Tensile Strength	kPa	TD	700(7Kg f/cm3)
Elongation	%	MD	280
Elongation	%	TD	175
Tear Strength	n/m	MD	6.9 x 103(7.0kg f/cm)
Tear Strength	n/m	TD	4.9 x 103(5.0kg f/cm)
Cell Structure			CLOSED
Average Diameter of Cell	mm		0.2
Elasticity	%		15
Sound Absorption Coefficinet	db		55
Water Absorption	kg/m2		2.5
STC	db		73
IIC	db		74
Delta IIC	db		25

Strong acoustic barrier for noise control

Mildew and Mold Resistant

100% Recyclable, Non-Toxic, Non-Allergenic

Water Vapour Barrier Inbuilt

Premium Sound Ratings STC 73 / IIC 74

Prepare the subfloor for the flooring installation, ensure it is dry and flat
Unroll and place Moccasin underlayment with black textured side down, this acts as the moisture barrier
Trim and cut to follow the perimeter of the room to create a smooth continuous membrane
You are ready to install your vinyl floor
